Air Compressor
Authorized Agent And Distributor

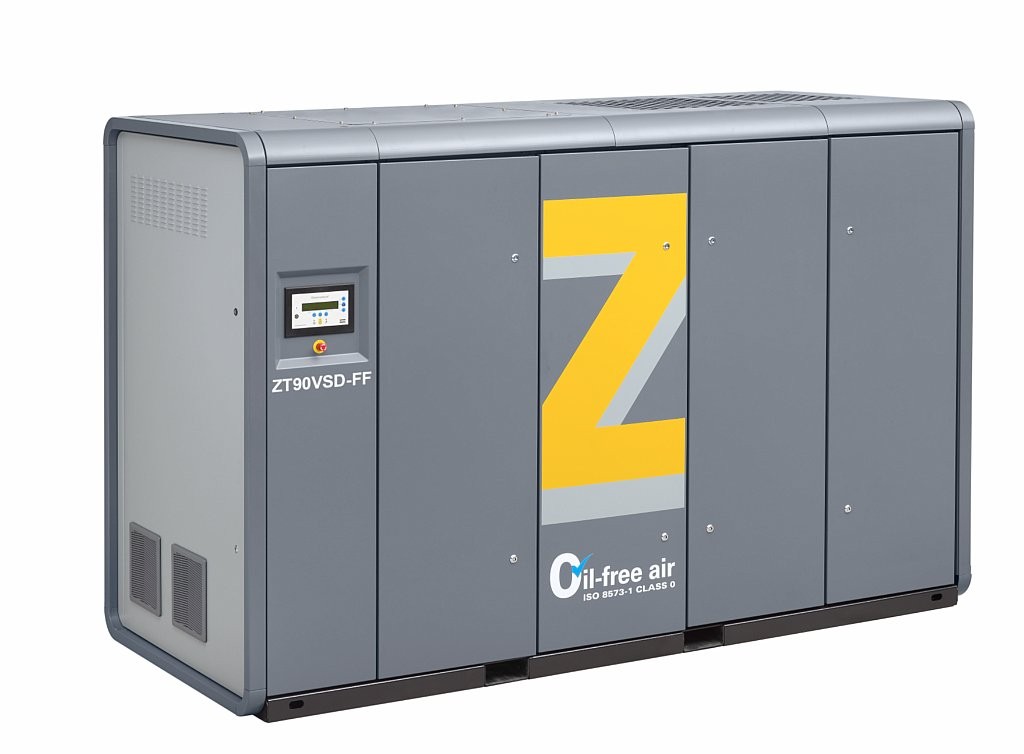

ZT/ZR Series
Air or water cooled oil-free rotary screw compressors
Specification
- Power: 110-900 kW
- Working Pressure: 7.5 - 8.6 - 10 - 10.4 - 13 bar(e) - 100, 125 and 150 psig
- Capacity: 250-2456 l/s - 15.0-147.3 m3/min - 530-5206 cfm - 50/60 Hz
Features:
- A fully integrated package
- IP 55 (TEFC) drive motor (LV)
- Intercooler and after-cooler
- Water traps and auto drains
- Inlet filter - air inlet/outlet silencer
- Complete water circuit (ZR)
- Complete pre-piped oil circuit
- All necessary connections
- Pre-mounted electrical cubicle
- Silencing canopy
- Structural skid
- Built-in oil breather system
- Fully automatic (for full load/no load LV) or VSD (Variable Speed Drive) regulation
- Star-delta starter (for full load/no load LV) or super-soft-starter (for VSD)
- Heat recovery option
- Standard options tailored to your needs
Benefits:
- 100% oil-free - no risk of oil-contaminated air
- No oil in the condensate
- Completely ready-to-use package
- Easy, low cost installation - no foundations
- Air-cooled and water-cooled versions
- Low cooling water consumption with water-cooled variant
- Proven reliability: more than 50,000 product installations
- True performance as per ISO 1217, Annex C, Ed. 3
- Flexible as a base load or a top load machine
- Consistent performance over the lifetime of the compressor
- Operator and service friendly
- Silenced package
- Very low vibration level
- Energy saving Variable Speed Drive & Full-Feature versions available
- Integrated IMD dryer in FF version
