Conveyor Chain
Authorized Agent & Distributor Sales & After Sales Service
Sugar Cane industry
Chain for every stage of the process
1. Feed Tables
Whether wet, dry or chopped Renold know the chains you need.Select Forged (458, X678, 698),Welded (W78, W82, W124, W132)or Combination (C102BM, C111M,C132) chains from Renold.

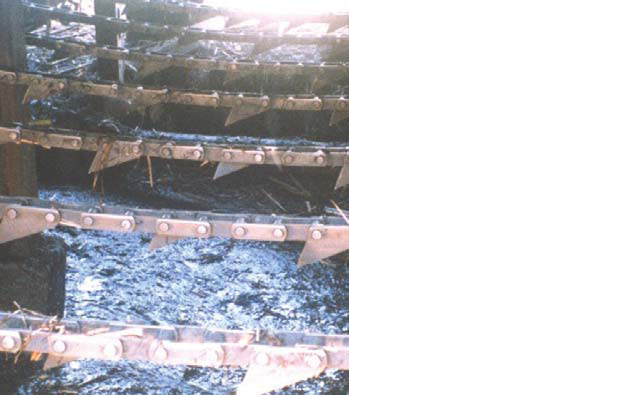

2. Cane Carriers
Renold cane carrier chain breakingloads range from272kN to 620kN.Renold’s experience,as the originatorsof the bush roller chain,and being the first company to incorporatethese features for cane carrier applications,makes Renold placed to offer the finest products for carrying cane from the yardto the first mill. Materials, heat treatment and design have been developed to ensure optimum chain life and maximum valuefor modest cost. Grease gun lubrication through the chain pin is available onrequest and heat treated stainless steelpins, bushes and rollers can be supplied
3. Shredded Cane Elevators/Carriers
Can be either slat type with K2 type chain or scraper type, like Donnelly Chute
Carriers. Chains will suffer dirt, corrosion and run at higher speeds than the cane carrier, causing greater wear.
4. Drive Chains
For mill roller drives we manufacture all BS and ANSI standard chains in multi-strand form up to 4.0” pitch. Alternatively we make the cranked link design up to 6.0” pitch or can design specials to suit your needs. Standard conveyor drives use BS or ANSI standards range.
5. Bagasse Chains
These are the lightest duty and usually the longest and fastest conveyors in the factory. Chain weight is often the largest loading on the conveyor. Large rollers ensure fewer revolutions and provide longer life. Typical chain is the 2184.
